Load Project

Load project's configuration, metadata and combined data.

from pathlib import Path
import pandas as pd
from compass_labyrinth import load_project


project_path = Path(".").resolve() / "my_project_2"

# Import config and metadata
config, cohort_metadata = load_project(project_path=project_path)

# Import all sessions combined pose-estimation CSV
df_all_csv = pd.read_csv(project_path / "csvs" / "combined" / "Preprocessed_combined_file_exclusions.csv")

Simulated Agent Modelling

This function evaluates the performance of a simulated agent navigating the maze by estimating the proportion of optimal decisions (e.g., choosing the reward path) within fixed-size epochs across multiple simulations and bootstrap samples.

It also trims the simulated agent performance dataframe to the set of common epochs shared across all simulations, ensuring clean aggregation and plotting.

  1. Ensure df_all_csv includes 'Session', 'Grid Number', and the specified decision node labels.
  2. Set epoch_size to define the number of frames grouped into each epoch (e.g., 1000).
  3. Set n_bootstrap to the number of bootstrap resamples per simulation.
  4. Set n_simulations to the number of independent simulated agents to evaluate.
  5. Set decision_label to the node type representing decision points (e.g., 'Decision (Reward)').
  6. Set reward_label to the region considered as the optimal path (e.g., 'Reward Path').
from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import evaluate_agent_performance

# Set these values
EPOCH_SIZE = 1000
N_BOOTSTRAP = 10000
N_SIMULATIONS = 100
DECISION_LABEL = "Decision (Reward)"
REWARD_LABEL = "reward_path"
GENOTYPE = "WT"

sim_results = evaluate_agent_performance(
    df=df_all_csv,
    epoch_size=EPOCH_SIZE,
    n_bootstrap=N_BOOTSTRAP,
    n_simulations=N_SIMULATIONS,
    decision_label=DECISION_LABEL,
    reward_label=REWARD_LABEL,
    trim=True,
)
sim_results["WT"]

 Max common epoch across all sessions: 26
 Max common epoch across all sessions: 55
Actual Reward Path % Simulated Agent Reward Path % Actual Reward Path % CI Lower Actual Reward Path % CI Upper Simulated Agent Reward Path % CI Lower Simulated Agent Reward Path % CI Upper Relative Performance Session Epoch Number
0 0.923940 0.748434 0.885496 0.961832 0.732214 0.764198 1.234498 3 1
1 0.927493 0.747362 0.900763 0.954198 0.737023 0.757521 1.241023 3 2
2 0.896362 0.699103 0.862069 0.931034 0.684397 0.713793 1.282159 3 3
3 0.917142 0.730479 0.888430 0.946281 0.718965 0.742068 1.255534 3 4
4 0.932080 0.718258 0.900524 0.958115 0.702984 0.733353 1.297696 3 5
... ... ... ... ... ... ... ... ... ...
73 0.885978 0.680947 0.822785 0.936709 0.658734 0.702785 1.301098 5 22
74 0.916607 0.710688 0.882353 0.946078 0.697252 0.723775 1.289746 5 23
75 0.914044 0.754817 0.880383 0.942584 0.745742 0.763493 1.210947 5 24
76 0.897510 0.670536 0.860215 0.930108 0.654409 0.686454 1.338496 5 25
77 0.960761 0.723498 0.936275 0.980392 0.712353 0.734510 1.327939 5 26

78 rows × 9 columns

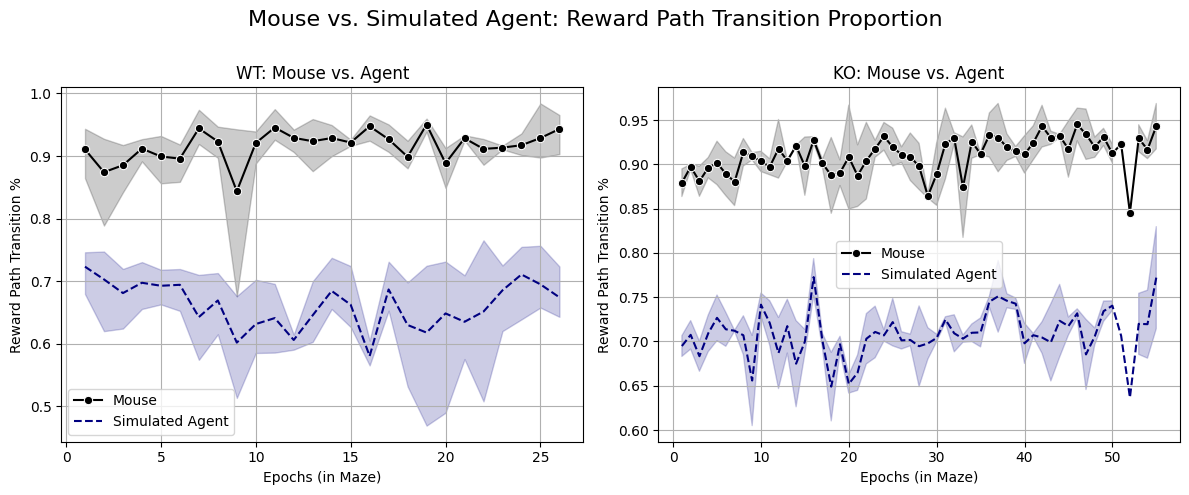

Plot 1: Simulated Agent vs Mouse Performance across Time

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_agent_transition_performance


plot_agent_transition_performance(
    config=config,
    evaluation_results=sim_results,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/all_genotypes_sim_agent_mouse_perf.pdf

png

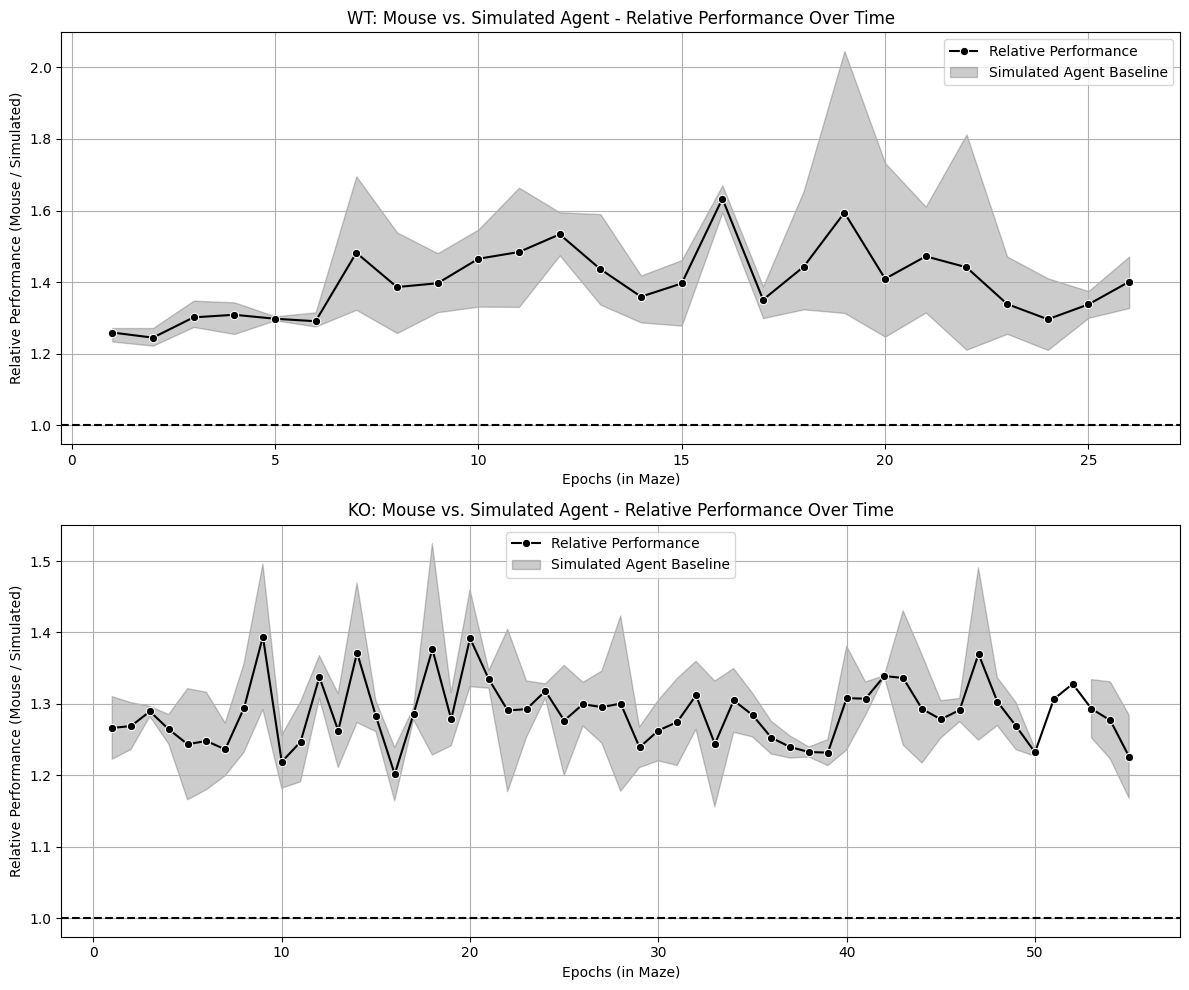

Plot 2: Relative Performance across Time

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_relative_agent_performance


plot_relative_agent_performance(
    config=config,
    evaluation_results=sim_results,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/all_genotypes_relative_perf.pdf

png

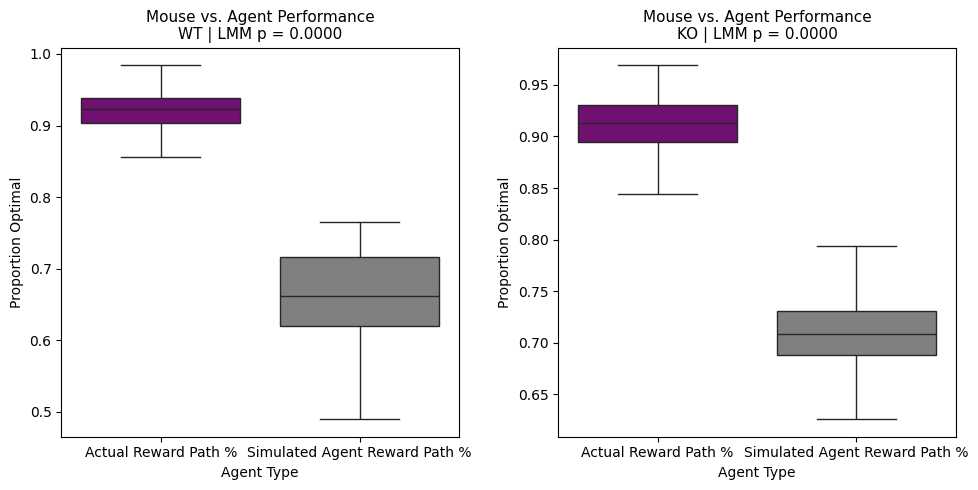

Plot 3: Avg. Simulated Agent and Mouse Performance across Sessions

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import run_mixedlm_for_all_genotypes


pvals_by_genotype = run_mixedlm_for_all_genotypes(
    config=config,
    evaluation_results=sim_results,
    plot_palette=["purple", "grey"],
)
print(pvals_by_genotype)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/cumulative_sim_agent_mouse_perf.pdf

png

{'WT': np.float64(6.127002099983219e-215), 'KO': np.float64(0.0)}

Chi Square Analysis

This workflow calculates the chi-square divergence between actual animal performance and a simulated agent’s expected behavior across epochs, and summarizes the result using both rolling and cumulative statistics to track behavioral divergence over time.

  1. Ensure df_sim contains 'Actual Reward Path %', 'Simulated Agent Reward Path %', 'Epoch Number', and 'Session' columns.
  2. Use compute_chi_square_statistic() to compute per-epoch chi-square scores comparing actual vs. simulated usage.
  3. Use compute_rolling_chi_square() to calculate rolling averages over time for trend visualization.
  4. Use compute_cumulative_chi_square() to track the running average of chi-square divergence over all prior epochs.
from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import run_chi_square_analysis


ROLLING_WINDOW = 3

# Compute chi-square stats for each genotype
chisquare_results = run_chi_square_analysis(
    config=config,
    evaluation_results=sim_results,
    rolling_window=ROLLING_WINDOW
)

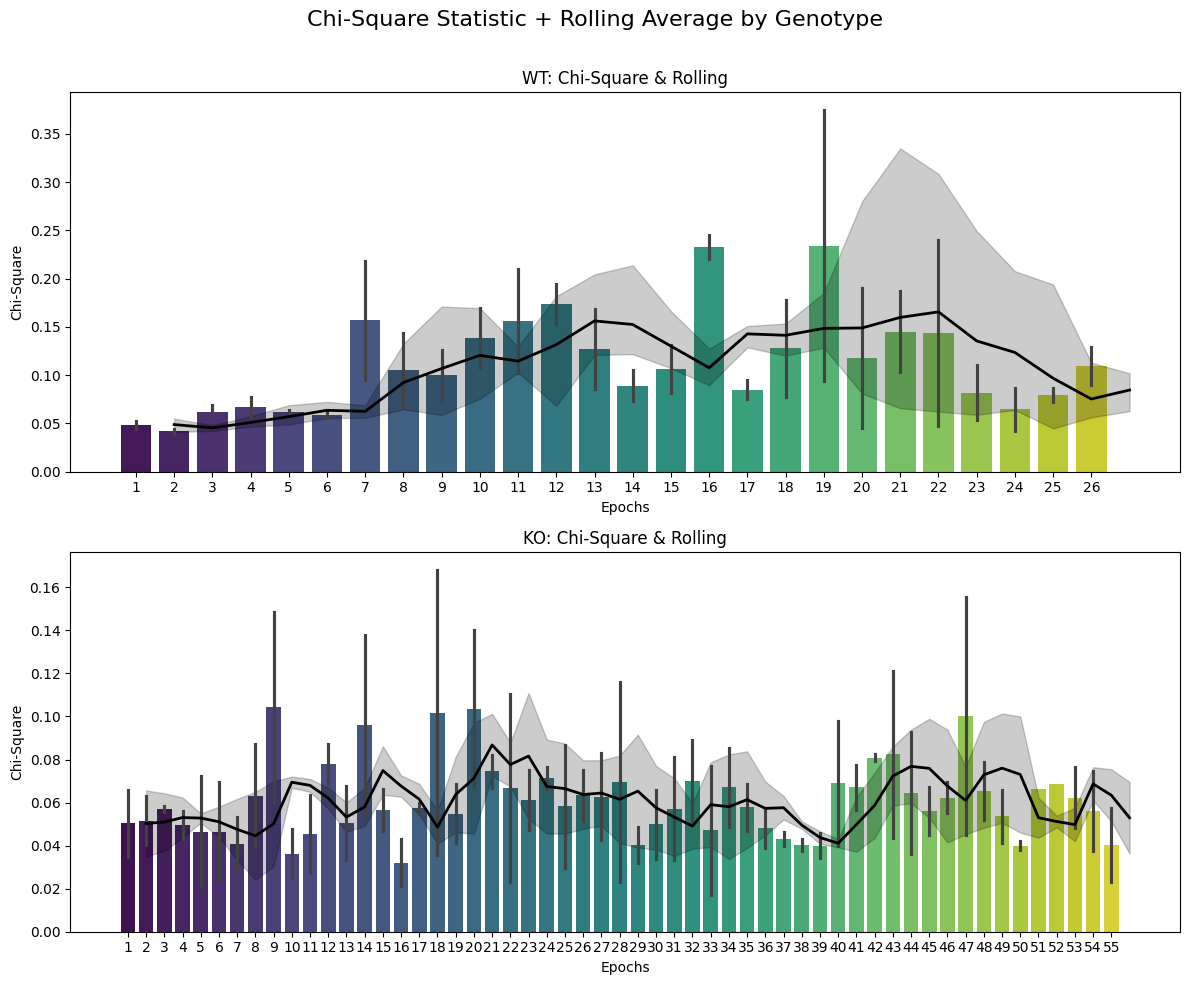

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_chi_square_and_rolling


plot_chi_square_and_rolling(
    config=config,
    chisquare_results=chisquare_results,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/all_genotypes_chi_square_rolling.pdf

png

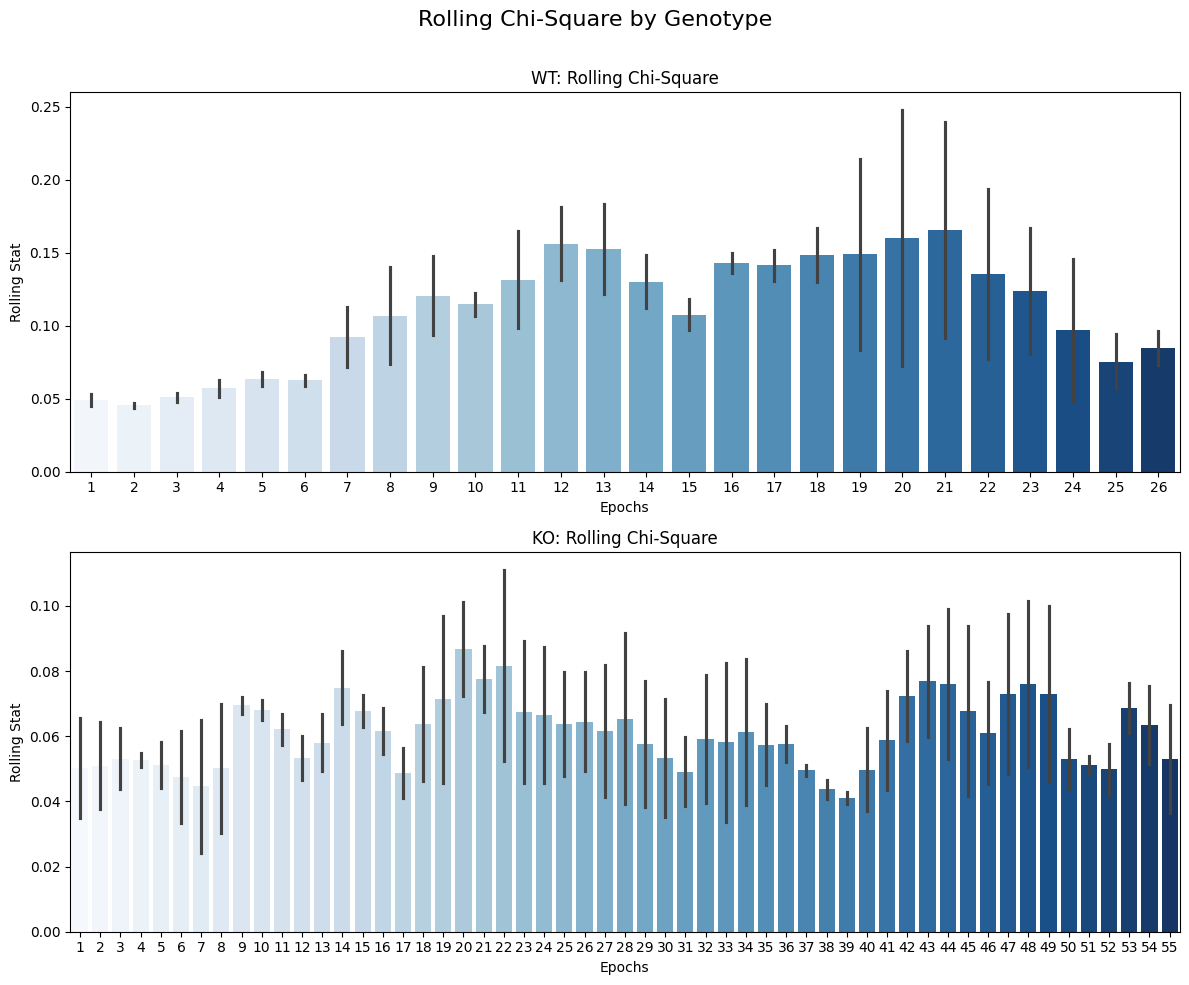

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_rolling_mean


plot_rolling_mean(
    config=config,
    chisquare_results=chisquare_results,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/all_genotypes_average_chi_square_rolling.pdf

png

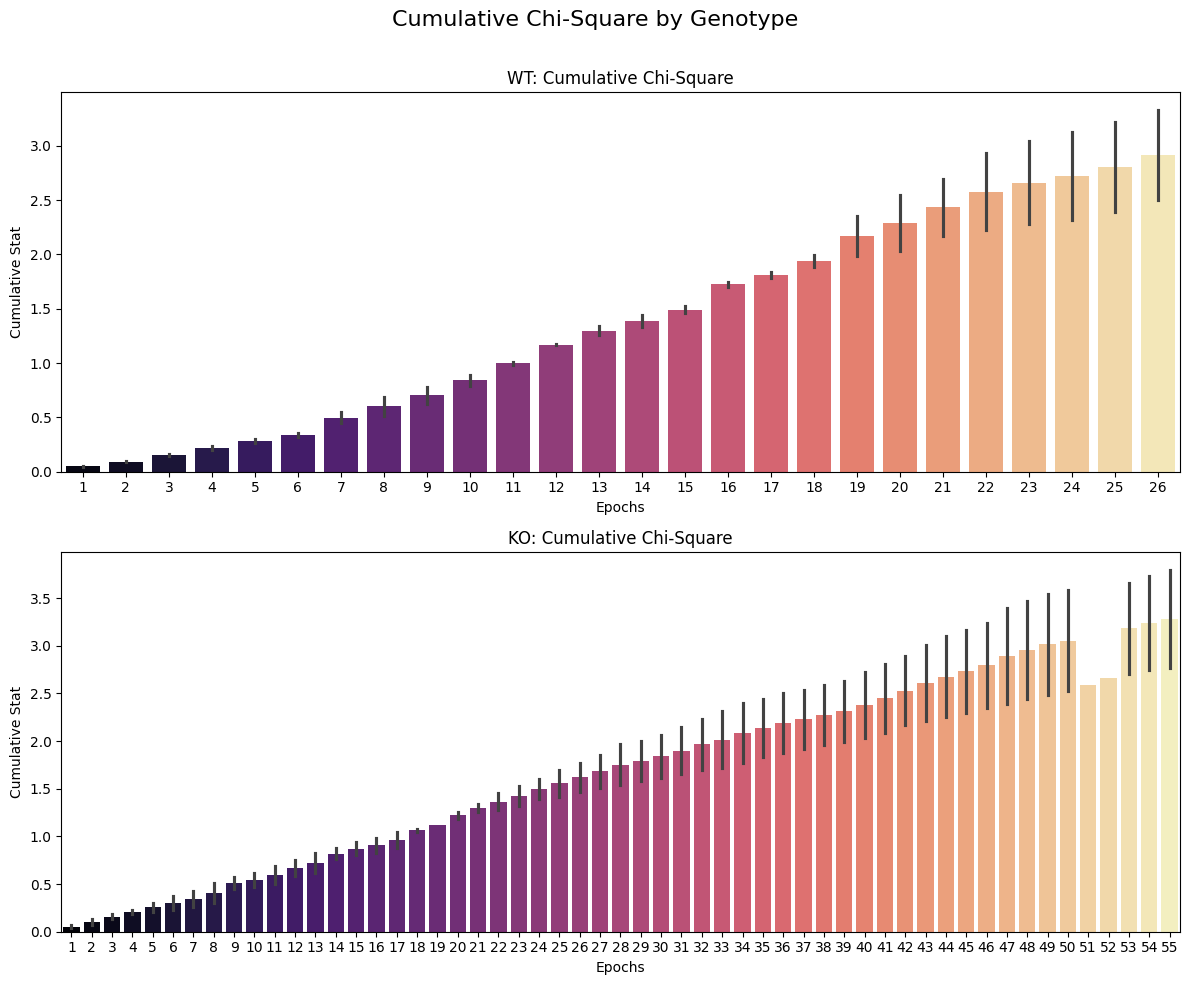

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_cumulative_chi_square


plot_cumulative_chi_square(
    config=config,
    chisquare_results=chisquare_results,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/all_genotypes_cumulative_chi_square.pdf

png

Simulated Agent, Binary Agent, 3 or 4-way Agent Modelling & Comparison

This function simulates multiple agent types (simulated, binary, and 3/4-way), evaluates their decision performance over fixed-size epochs, and compares them to actual animal decisions using bootstrap confidence intervals.

  1. Ensure df_all_csv includes 'Session', 'NodeType', 'Region', and 'Grid Number'.
  2. Use epoch_size to define the time resolution (e.g., 1000 frames per epoch).
  3. Set n_simulations and n_bootstrap to define agent variability and confidence bounds.
  4. Use decision_label and reward_label to define relevant transitions (e.g., 'Decision (Reward)', 'Reward Path').
  5. Optional: Pass custom 3-way and 4-way decision node sets.
from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import evaluate_agent_performance_multi


# Evaluate agent vs. actual decisions
df_all_simulated = evaluate_agent_performance_multi(
    df=df_all_csv,
    epoch_size=EPOCH_SIZE,
    n_bootstrap=N_BOOTSTRAP,
    n_simulations=N_SIMULATIONS,
    decision_label=DECISION_LABEL,
    reward_label=REWARD_LABEL,
    trim=True,
)
df_all_simulated

 Max common epoch across all sessions: 26
Actual Reward Path % Random Agent Reward Path % Binary Agent Reward Path % Three/Four Way Agent Reward Path % Actual Reward Path % CI Lower Actual Reward Path % CI Upper Random Agent Reward Path % CI Lower Random Agent Reward Path % CI Upper Binary Agent Reward Path % CI Lower Binary Agent Reward Path % CI Upper Three/Four Way Agent Reward Path % CI Lower Three/Four Way Agent Reward Path % CI Upper Relative Performance (Actual/Random) Relative Performance (Actual/Binary) Session Epoch Number
0 0.923615 0.751548 0.497364 0.300797 0.885496 0.961832 0.735573 0.767176 0.489084 0.505420 0.291756 0.310076 1.228951 1.857021 3 1
1 0.927951 0.749971 0.496901 0.309913 0.900763 0.954198 0.739998 0.760153 0.491945 0.501832 0.304008 0.315840 1.237315 1.867476 3 2
2 0.896551 0.692951 0.496214 0.317039 0.862069 0.926724 0.678103 0.707845 0.491078 0.501422 0.310733 0.323362 1.293815 1.806782 3 3
3 0.917495 0.731893 0.501693 0.314694 0.888430 0.946281 0.719669 0.744132 0.496446 0.507025 0.308719 0.320702 1.253591 1.828797 3 4
4 0.932093 0.720083 0.499386 0.325859 0.900524 0.963351 0.704660 0.735395 0.493243 0.505550 0.319948 0.331780 1.294425 1.866479 3 5
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
125 0.947535 0.684012 0.497143 0.313984 0.926573 0.968531 0.674091 0.694058 0.492483 0.501853 0.308846 0.318986 1.385261 1.905960 7 22
126 0.907552 0.683316 0.497201 0.323391 0.870370 0.944444 0.669812 0.696728 0.490864 0.503642 0.315864 0.330864 1.328159 1.825321 7 23
127 0.946756 0.717656 0.492673 0.319343 0.920705 0.969163 0.705419 0.729868 0.487225 0.498062 0.313348 0.325419 1.319234 1.921670 7 24
128 0.940703 0.697772 0.496165 0.310431 0.911330 0.965517 0.685663 0.709901 0.490342 0.501970 0.303547 0.317241 1.348153 1.895950 7 25
129 0.919268 0.688790 0.495408 0.332614 0.879195 0.953020 0.674094 0.703221 0.488792 0.501950 0.325973 0.339060 1.334613 1.855579 7 26

130 rows × 16 columns

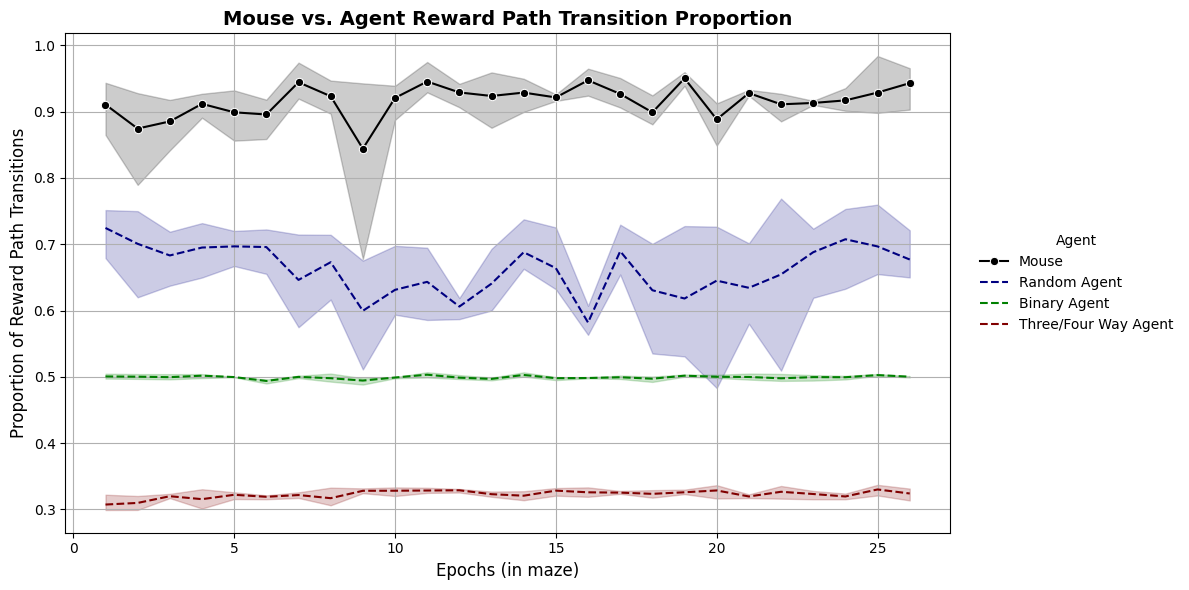

Plot 5: All Agents Comparative Performance over time

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_agent_vs_mouse_performance_multi


GENOTYPE = 'WT'

plot_agent_vs_mouse_performance_multi(
    config=config,
    df_metrics=df_all_simulated,
    cohort_metadata=cohort_metadata,
    genotype=GENOTYPE,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/WT_multiple_agent.pdf

png

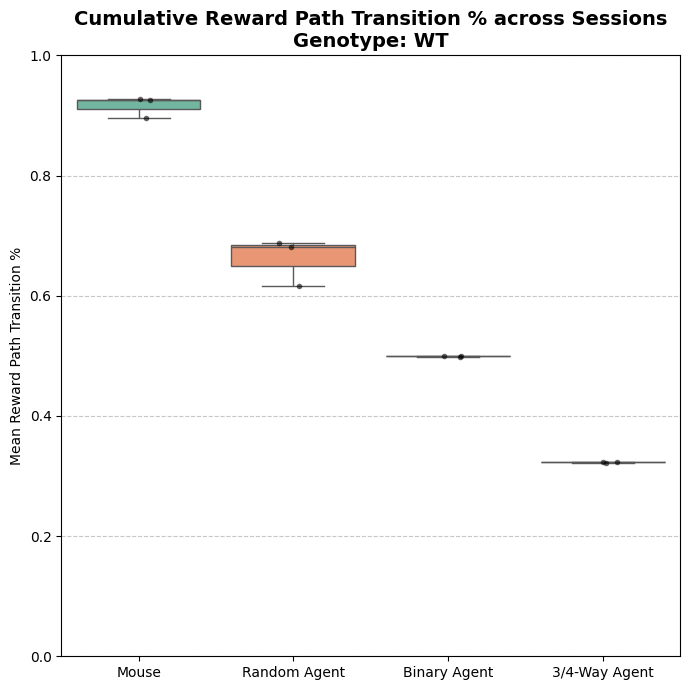

Plot 6: Cumulative Multiple Agent Performance

This function compares average reward path transition percentages across sessions for mouse and simulated agents using a boxplot. Useful for visualizing group-wise strategy efficiency.

  1. Provide df_metrics from evaluate_agent_performance_multi().
  2. Provide cohort_metadata with 'Session #' and 'Genotype'.
  3. Set genotype to the group you want to compare.
from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_cumulative_agent_comparison_boxplot_multi


GENOTYPE = 'WT'

plot_cumulative_agent_comparison_boxplot_multi(
    config=config,
    df_metrics=df_all_simulated,
    cohort_metadata=cohort_metadata,
    genotype=GENOTYPE,
    figsize=(7, 7),
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/WT_cumulative_multiple_agent.pdf

png

Exploration-Exploitation (EE) Agent Evaluation

This module simulates an exploration-exploitation agent with a tunable exploration rate and compares its reward path transition performance to that of real mice over fixed-size epochs.

  1. Ensure df_all_csv includes 'Session', 'NodeType', 'Region', and 'Grid Number' columns.
  2. Set exploration_rate to define the agent’s behavior:
    • Low values (e.g., 0.2) bias toward exploitation (optimal paths).
    • High values (e.g., 0.9) bias toward exploration (random paths).
  3. Use segment_size consistently in both analysis and plotting functions.
  4. Use n_simulations and n_bootstrap to determine statistical confidence.
  5. Use decision_label and reward_label to define what constitutes a decision and a reward-oriented move.
from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import run_exploration_agent_analysis_EE
import numpy as np


SEGMENT_SIZE = 1000  # Ensure this is consistent across functions
EXPLORATION_RATE = 0.5  # Tunable parameter for agent behavior

df_agent_perf = run_exploration_agent_analysis_EE(
    df=df_all_csv,
    exploration_rate=EXPLORATION_RATE,
    segment_size=SEGMENT_SIZE,
    n_bootstrap=10000,
    n_simulations=100,
    decision_label='Decision (Reward)',
    reward_label='reward_path',
)
df_agent_perf

 Max common epoch across all sessions: 26
Actual Reward Path % Agent Reward Path % Actual Reward Path % CI Lower Actual Reward Path % CI Upper Agent Reward Path % CI Lower Agent Reward Path % CI Upper Relative Performance Session Epoch Number
0 0.863970 0.855894 0.826291 0.901408 0.847509 0.864131 1.009437 6 1
1 0.894246 0.863607 0.855556 0.933333 0.855331 0.871722 1.035478 6 2
2 0.897874 0.851012 0.862245 0.933673 0.841939 0.859745 1.055066 6 3
3 0.884607 0.847398 0.843537 0.925170 0.837347 0.857483 1.043909 6 4
4 0.877539 0.873403 0.836257 0.918129 0.865322 0.881345 1.004736 6 5
... ... ... ... ... ... ... ... ... ...
125 0.885952 0.848380 0.822785 0.936709 0.836329 0.860259 1.044287 5 22
126 0.916440 0.856181 0.882353 0.946078 0.848529 0.863676 1.070381 5 23
127 0.914030 0.876937 0.880383 0.942584 0.871148 0.882632 1.042298 5 24
128 0.897738 0.837555 0.860215 0.935484 0.829194 0.845806 1.071855 5 25
129 0.960766 0.860857 0.936275 0.980392 0.854363 0.867255 1.116057 5 26

130 rows × 9 columns

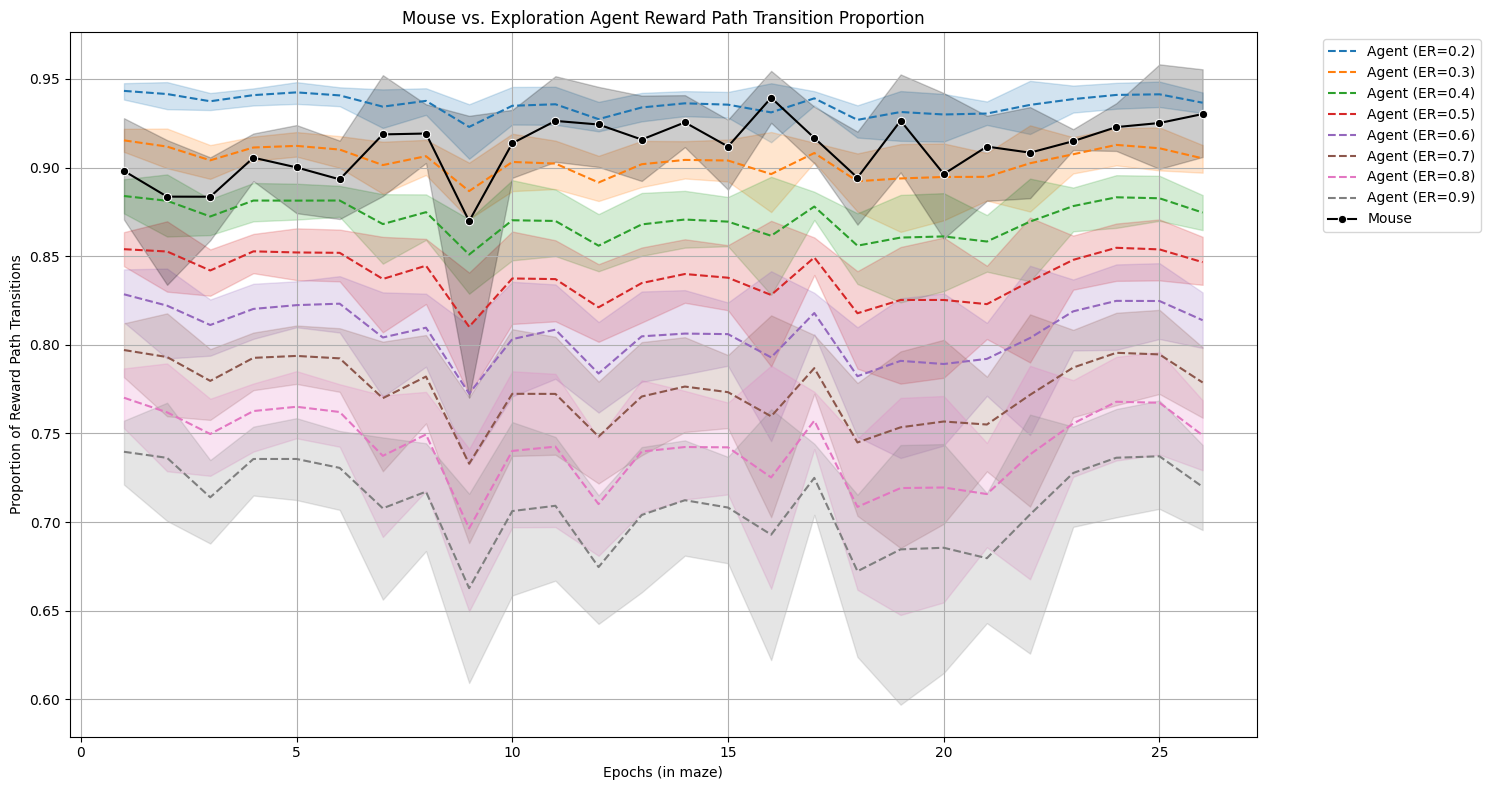

Plot 7: Agent Performance Across Varying Exploration Rates

Visualize agent vs. mouse performance across exploration rates:

from compass_labyrinth.behavior.behavior_metrics.simulation_modeling import plot_exploration_rate_performance_EE


# Range of exploration rate values
EXPLORATION_RATE_RANGE = np.arange(0.2, 1.0, 0.1)

plot_exploration_rate_performance_EE(
    config=config,
    df_source=df_all_csv,
    exploration_rates=EXPLORATION_RATE_RANGE,
    segment_size=SEGMENT_SIZE,
    trim=True,
)

Exploration rate =  0.2  being processed....
 Max common epoch across all sessions: 26
Exploration rate =  0.3  being processed....
 Max common epoch across all sessions: 26
Exploration rate =  0.4  being processed....
 Max common epoch across all sessions: 26
Exploration rate =  0.5  being processed....
 Max common epoch across all sessions: 26
Exploration rate =  0.6  being processed....
 Max common epoch across all sessions: 26
Exploration rate =  0.7  being processed....
 Max common epoch across all sessions: 26
Exploration rate =  0.8  being processed....
 Max common epoch across all sessions: 26
Exploration rate =  0.9  being processed....
 Max common epoch across all sessions: 26
 Max common epoch across all sessions: 26
Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/ee_agent.pdf

png
