Load Project

from pathlib import Path
import pandas as pd
from compass_labyrinth import load_project


project_path = Path(".").resolve() / "my_project_2"

# Import config and metadata
config, cohort_metadata = load_project(project_path=project_path)

Load the HMM results

df_hmm = pd.read_csv(project_path / "results" / "compass_level_1" / "data_with_states.csv")
df_hmm

	ID	step	angle	x	y	Grid Number	likelihood	S_no	Region	Session	Genotype	Sex	NodeType	Velocity	HMM_State	Post_Prob_1	Post_Prob_2
0	3	3.912921	-1.149582	267.526978	873.733704	47	0.986050	750	entry_zone	3	WT	Female	Entry Nodes	19.564603	1.0	NaN	NaN
1	3	1.981172	0.620240	265.571991	873.412659	47	0.953975	751	entry_zone	3	WT	Female	Entry Nodes	9.905860	1.0	NaN	NaN
2	3	1.066163	-2.518697	266.325684	874.166748	47	0.958631	752	entry_zone	3	WT	Female	Entry Nodes	5.330815	1.0	NaN	NaN
3	3	0.899351	2.238799	265.432495	874.271851	47	0.932229	753	entry_zone	3	WT	Female	Entry Nodes	4.496755	1.0	NaN	NaN
4	3	0.519677	1.625876	265.400269	873.753174	47	0.909978	754	entry_zone	3	WT	Female	Entry Nodes	2.598385	1.0	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
265485	7	58.644322	-0.866077	228.690262	814.897949	34	0.999385	225311	reward_path	7	KO	Female	Non-Decision (Reward)	293.221609	2.0	NaN	NaN
265486	7	67.785952	0.178698	292.517883	837.722717	46	0.999992	225312	entry_zone	7	KO	Female	Entry Nodes	338.929760	2.0	NaN	NaN
265487	7	24.729589	1.114421	295.305054	862.294739	47	0.999458	225313	entry_zone	7	KO	Female	Entry Nodes	123.647944	2.0	NaN	NaN
265488	7	14.627917	0.109074	295.361694	876.922546	47	0.999976	225314	entry_zone	7	KO	Female	Entry Nodes	73.139586	2.0	NaN	NaN
265489	7	24.111518	0.041934	294.444183	901.016602	47	0.962276	225315	entry_zone	7	KO	Female	Entry Nodes	120.557592	2.0	NaN	NaN

265490 rows × 17 columns

State Representation: Characteristics

• State 1 --> Low Step Length, High Turn Angle --> "Surveillance" state (Red)
• State 2 --> High Step Length, Low Turn Angle --> "Ambulatory" state (Blue)

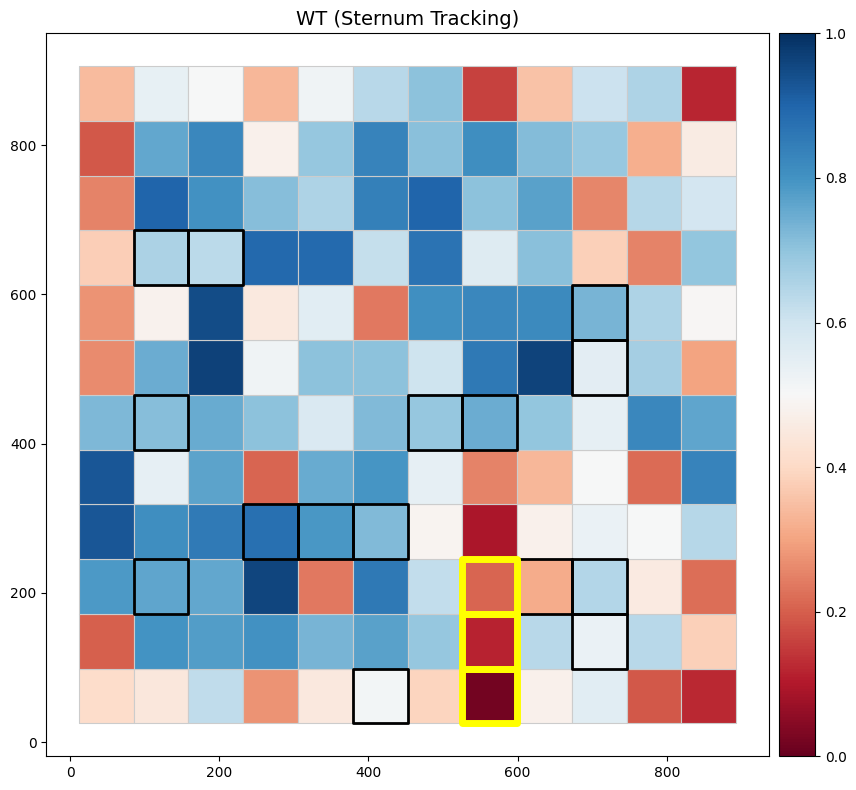

Plot 1: Heatmap Representations of HMM States

This workflow visualizes the spatial distribution of HMM state proportions over a grid-mapped maze using heatmaps. It overlays key regions such as decision and target nodes for the specified genotype.

Recommended Use:

1. Ensure df_hmm contains columns: 'Genotype', 'Grid.Number', 'HMM_State', 'x', and 'y'.
2. Set genotype_name to the genotype of interest (e.g., 'WT-WT').
3. Set grid_filename to the corresponding shapefile for the session.
4. Use compute_state_proportion() to calculate per-grid HMM state proportions.
5. Load the grid geometry using create_grid_geodata().
6. Use map_points_to_grid() and sjoin() to align state estimates with grid polygons.
7. Merge state proportions back into the grid using merge_state_proportions_to_grid().
8. Plot the heatmap using plot_grid_heatmap() and highlight decision/target regions.

from compass_labyrinth.post_hoc_analysis.level_1 import (
    compute_state_proportion,
    create_grid_geodata,
    map_points_to_grid,
    merge_state_proportions_to_grid,
    plot_grid_heatmap,
)

genotype_name = 'WT'
grid_filename = "Session-3 grid.shp"

# Step 1: Compute HMM state proportions by grid
state_df = compute_state_proportion(
    df=df_hmm,
    genotype_name=genotype_name,
    hmm_state=2,
)

# Step 2: Load session-specific grid geometry
grid = create_grid_geodata(
    config=config,
    grid_filename=grid_filename,
)

# Step 3: Map mean (x, y) points to grid polygons
pointInPolys = map_points_to_grid(state_df, grid)

# Step 4: Merge proportions with grid polygons
grid_mapped = merge_state_proportions_to_grid(grid, state_df)

# Step 5: Plot heatmap with overlays for Decision and Target zones
ax = plot_grid_heatmap(
    config=config,
    grid=grid_mapped,
    genotype_name=genotype_name,
    highlight_grids="decision_reward",
    target_grids="target_zone",
)

print('Decision Nodes highlighted in BLACK')
print('Target Nodes highlighted in YELLOW')

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/WT_grid_heatmap.png

Decision Nodes highlighted in BLACK
Target Nodes highlighted in YELLOW

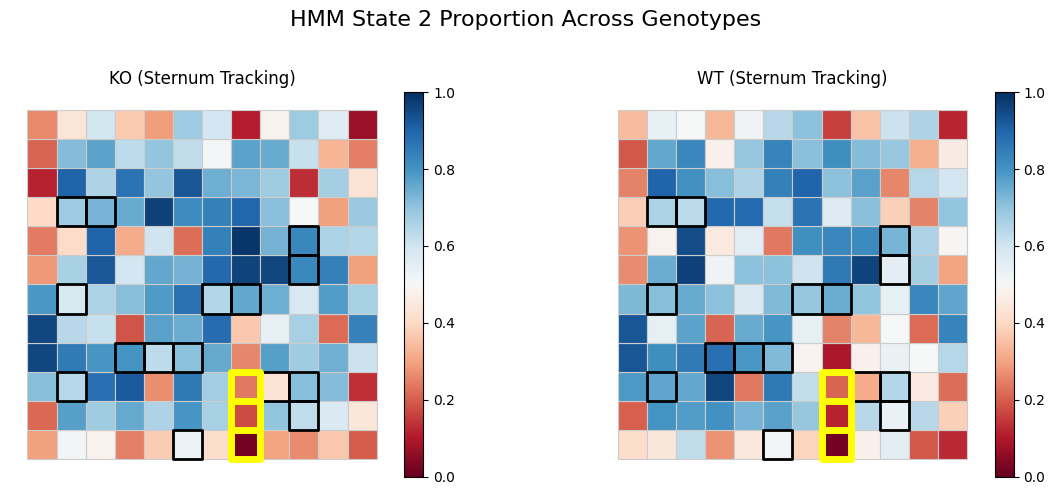

Heatmap representations of all genotypes

from compass_labyrinth.post_hoc_analysis.level_1 import plot_all_genotype_heatmaps


plot_all_genotype_heatmaps(
    config=config,
    df_hmm=df_hmm,
    grid_filename = grid_filename,
    highlight_grids="decision_reward",
    target_grids="target_zone",
    hmm_state=2,
    cmap='RdBu',
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/all_genotypes_grid_heatmap.pdf

Interactive Heatmap version

from compass_labyrinth.post_hoc_analysis.level_1 import (
    compute_state_proportion,
    create_grid_geodata,
    get_grid_centroids,
    plot_interactive_heatmap,
    overlay_trajectory_lines_plotly,
)


genotype_name = 'WT'

# 1. Compute state proportions
state_df = compute_state_proportion(df_hmm, genotype_name)

# 2. Load session-specific grid geometry
grid = create_grid_geodata(
    config=config,
    grid_filename=grid_filename,
)

# 3. Merge proportion values to grid
grid_mapped = merge_state_proportions_to_grid(grid, state_df)

# 4. Get grid centroids
grid_centroids = get_grid_centroids(grid_mapped)

# 5. Plot heatmap
fig = plot_interactive_heatmap(
    config=config,
    grid_mapped=grid_mapped,
    genotype_name=genotype_name,
    decision_grids="decision_reward",
    target_grids="target_zone",
    show_fig=False,
    return_fig=True,
)

# 6. Overlay smooth trajectory lines
overlay_trajectory_lines_plotly(
    fig=fig,
    df_hmm=df_hmm,
    genotype_name=genotype_name,
    grid_centroids=grid_centroids,
    top_percent=.1,
)

# 7. Show
fig.show()

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/WT_interactive_grid_heatmap.html

Interactive Heatmap version of all genotypes

from compass_labyrinth.post_hoc_analysis.level_1 import plot_all_genotype_interactive_heatmaps


plot_all_genotype_interactive_heatmaps(
    config=config,
    df_hmm=df_hmm,
    grid_filename="Session-3 grid.shp",
    hmm_state=2,
    decision_grids="decision_reward",
    target_grids="target_zone",
    top_percent=.1,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/all_genotypes_interactive_grid_heatmap.html

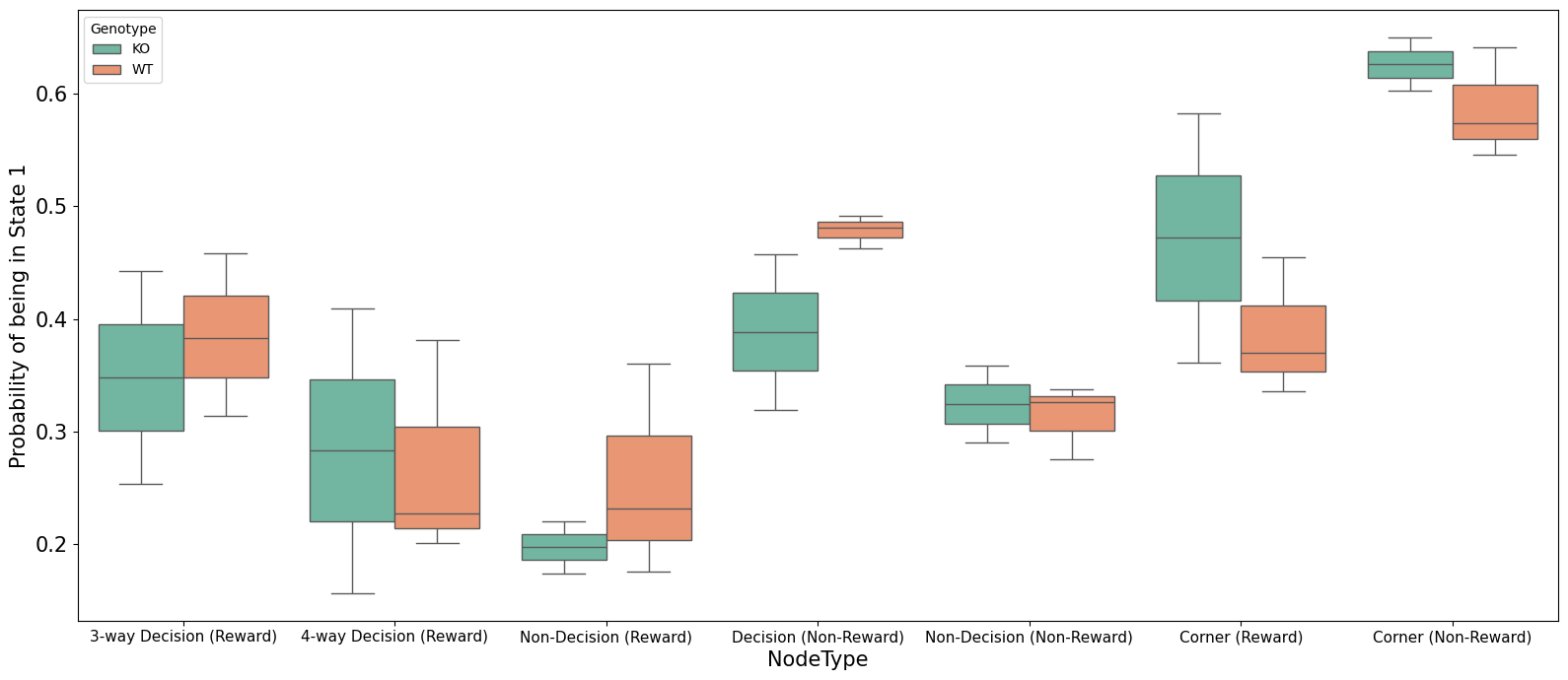

Plot 2: Probability of Surveillance across Node Types and Regions

This workflow computes and visualizes the probability of HMM state occupancy across behavioral Node Types/Regions

Recommended Use:

1. Ensure df_hmm includes 'Genotype', 'Session', 'HMM_State', 'NodeType', and 'Grid.Number'.
2. If analyzing decision complexity, pass lists of decision_3way and decision_4way grid numbers.
3. Use compute_state_probability() to get HMM state proportions per category.
4. Use plot_state_probability_boxplot() to visualize across genotypes.

from compass_labyrinth.post_hoc_analysis.level_1 import (
    compute_state_probability,
    plot_state_probability_boxplot,
)


column_of_interest = 'NodeType'
values_displayed = [
    '3-way Decision (Reward)', '4-way Decision (Reward)','Non-Decision (Reward)',
    'Decision (Non-Reward)', 'Non-Decision (Non-Reward)',
    'Corner (Reward)', 'Corner (Non-Reward)'
]
state = 1

# Step 1: Compute proportions
state_count_df = compute_state_probability(
    df_hmm=df_hmm,
    column_of_interest=column_of_interest,
    values_displayed=values_displayed,
    state=state,
)

# Step 2: Plot boxplot
plot_state_probability_boxplot(
    config=config,
    state_count_df=state_count_df,
    column_of_interest=column_of_interest,
    state=state,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/state_1_probability_by_NodeType.pdf

from compass_labyrinth.post_hoc_analysis.level_1 import run_pairwise_ttests


# T-tests amongst genotypes per category
ttest_results = run_pairwise_ttests(state_count_df, column_of_interest='NodeType')
print(ttest_results.sort_values("P-value"))

                       Group Genotype1 Genotype2    T-stat   P-value
2        Corner (Non-Reward)        KO        WT  1.054990  0.370853
6      Non-Decision (Reward)        KO        WT -0.986303  0.406441
4      Decision (Non-Reward)        KO        WT -1.294013  0.414199
3            Corner (Reward)        KO        WT  0.730535  0.580503
0    3-way Decision (Reward)        KO        WT -0.355269  0.768368
5  Non-Decision (Non-Reward)        KO        WT  0.290684  0.803928
1    4-way Decision (Reward)        KO        WT  0.098086  0.933951

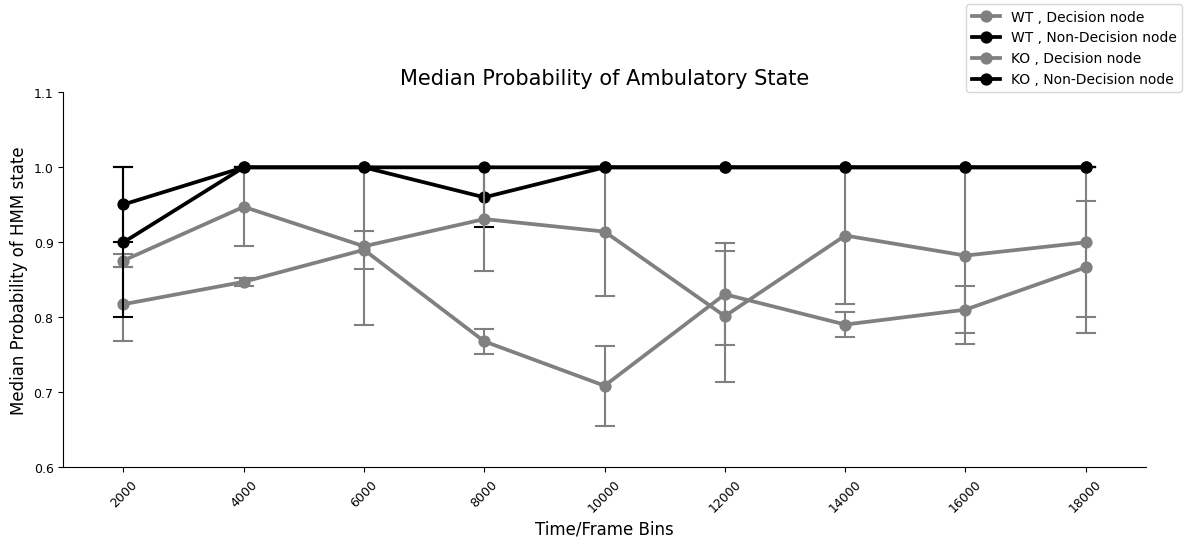

Plot 3: Probability of States over Time

This workflow analyzes how the probability of being in a specific HMM state (e.g., State 2) evolves over time at decision vs. non-decision nodes. It computes median probabilities across sessions using sliding time bins and plots the resulting curves to compare decision-related dynamics.

Recommended Use:

1. Ensure df_hmm contains columns: 'Time', 'Session', 'Grid.Number', 'HMM_State', 'NodeType', and 'Genotype'.
2. Define grid numbers corresponding to Decision_Reward and NonDecision_Reward nodes.
3. Set a time window (lower_limit to upper_limit) and a bin_size (e.g., 2000 frames) to compute time bins.
4. Use compute_node_state_medians_over_time() to calculate median state occupancy at decision vs. non-decision nodes.
5. Optionally filter the resulting DataFrame (Deci_DF) using a threshold to only keep early time bins.
6. Visualize the trajectory of state occupancy using plot_node_state_median_curve().

from compass_labyrinth.post_hoc_analysis.level_1 import (
    get_max_session_row_bracket,
    get_min_session_row_bracket,
    compute_node_state_medians_over_time,
    plot_node_state_median_curve,
)


lower_limit = 0
upper_limit = get_max_session_row_bracket(df_hmm)
threshold =  get_min_session_row_bracket(df_hmm)  # Only show bins where all sessions are present
bin_size = 2000
palette = ['grey', 'black']
figure_ylimit = (0.6, 1.1)

# Step 1: Compute median probability of being in State 1 across time bins
deci_df = compute_node_state_medians_over_time(
    df_hmm=df_hmm,
    state_types=[2],
    lower_lim=lower_limit,
    upper_lim=upper_limit,
    bin_size=bin_size
)

# Step 2: Optional filter to only plot early session bins
deci_df = deci_df.loc[deci_df.Time_Bins < threshold]

# Step 3: Plot time-evolving median probability curves
plot_node_state_median_curve(
    config=config,
    deci_df=deci_df,
    palette=palette,
    figure_ylimit=figure_ylimit,
    fig_title = 'Median Probability of Ambulatory State'
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/temporal_median_state_probability_curve.pdf

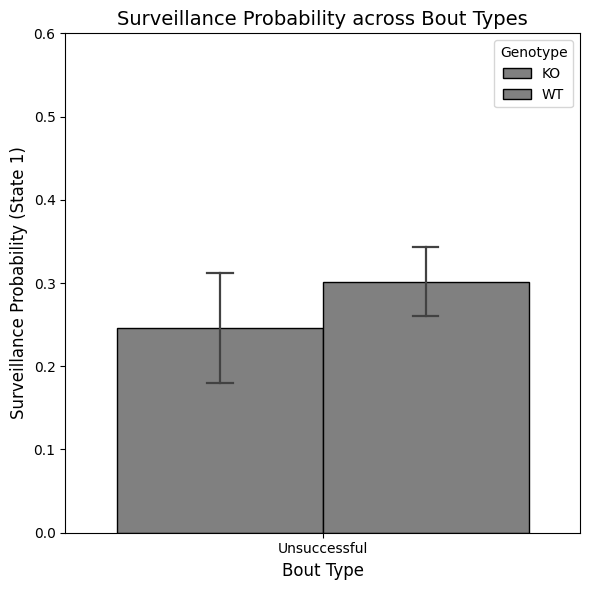

Plot 4: Surveillance Probability by Bout Type

This workflow evaluates behavioral surveillance patterns at decision nodes across navigational bouts in the maze. It segments the session into bouts, computes surveillance probability for each bout at decision nodes, and visualizes the average surveillance behavior across successful and unsuccessful bouts.

Recommended Use:

1. Ensure df_hmm contains columns: 'Grid.Number', 'Session', 'Genotype', and maze node annotations.
2. Use assign_bout_indices() to segment sessions into bouts based on re-entries into the maze (e.g., delimiter node 47).
3. Run compute_surveillance_probabilities() to calculate surveillance at specified decision nodes for each bout.
4. Use plot_surveillance_by_bout() to generate a grouped barplot comparing surveillance probability between successful and unsuccessful bouts, including a t-test p-value.

from compass_labyrinth.post_hoc_analysis.level_1 import (
    assign_bout_indices,
    compute_surveillance_probabilities,
    plot_surveillance_by_bout,
)


# Assign Bout Numbers
# Bout = Entry node 47 --> Other non-entry nodes --> Entry node 47
df_hmm = assign_bout_indices(
    df=df_hmm,
    delimiter_node=47,
)

# Compute surveillance probability at Decision nodes by Bout type
# Successful-> reached the target atleast once/Unsuccessful-> doesn't reached the target
index_df, median_df = compute_surveillance_probabilities(
    df_hmm=df_hmm,
    decision_nodes="decision_reward",
)

# Barplot to depict the above with ttest-ind pvalue
plot_surveillance_by_bout(
    config=config,
    median_df=median_df,
    ylim=0.6,
)

Figure saved at: /Users/luiztauffer/Github/CoMPASS-Labyrinth/notebooks/my_project_2/figures/surveillance_probability_by_bout.pdf

from compass_labyrinth.post_hoc_analysis.level_1 import run_within_genotype_mixedlm_with_fdr


# LMM for same genotype comparison across Bout types
df_within = run_within_genotype_mixedlm_with_fdr(index_df)

# Print results
print("Within-Genotype (Successful vs Unsuccessful):")
print(df_within)

Within-Genotype (Successful vs Unsuccessful):
Empty DataFrame
Columns: [FDR P-value, Significant (FDR < 0.05)]
Index: []

from compass_labyrinth.post_hoc_analysis.level_1 import test_across_genotypes_per_bout


# T-test across genotypes under Successful Bouts
df_across_success = test_across_genotypes_per_bout(median_df, bout_type='Successful')

# T-test across genotypes under Unsuccessful Bouts
df_across_unsuccess = test_across_genotypes_per_bout(median_df, bout_type='Unsuccessful')

# Print results
print("\n Across Genotypes (Successful only):")
print(df_across_success)

print("\n Across Genotypes (Unsuccessful only):")
print(df_across_unsuccess)

 Across Genotypes (Successful only):
Empty DataFrame
Columns: []
Index: []

 Across Genotypes (Unsuccessful only):
      Bout Type Genotype 1 Genotype 2    T-stat   P-value
0  Unsuccessful         KO         WT -0.714032  0.556053
